MODEL 200-FA

Performance (1.5:1 Gear Ratio)

Cranking Power Rating MAX
BHP
BHP (Min.) Starter Pinion
PRM Range		 Air Press.
PSIG
16
12
8		 2000-4000
2000-4000
1600-4000		 150
120
90		 18
14
10
Typical flow from 40 gallon tank: 5.5 cu.ft./sec.

Recommended Engine Sizes

Diesel Engines Carbureted Engines
150-650 Cu. In.
3-10 Liters		 400-1000 Cu. In.
6-16 Liters

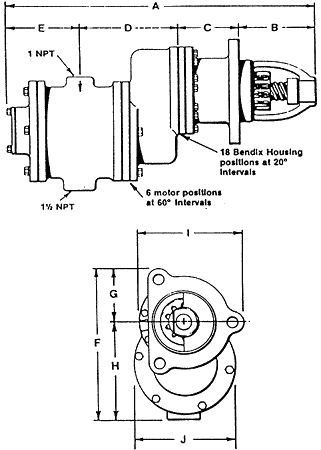

Model Dimensions (inches) Weight (lbs.)
A B C D E F G H I J
200-FA-R14 18 3/8 4 5/8 3 3/4 6 4 9 3 1/2 5 1/2 6 1/2 6 1/8 47
200-FA w/
200 series drive components		 18 3 1/2 to
2 1/2		 4 1/2
to
5 1/2		 6 4 9 3 1/2 5 1/2 6 1/2 6 1/8 38



Part Number Drive Housing Bendix Drive
(For Ordering) SAE Number Part Number Part Number Teeth   Pitch
200-FA-R14
200-FA-R24
200-FA-R26
200-FA-R28
200-FA-R36
200-FA-R38
200-FA-R39
200-FA-R80
200-FA-R82
200-FA-R84
200-FA-R85		 3
1 modified
1
1
1
1
1 modified
3
3
3
3		 251-5
201-51-3
201-61-6
201-61-3
201-61-6
201-61-6
201-51-3
201-92
201-92
201-92
201-92		 251-7-RH4
201-7-2
201-7-2
201-7-1
201-7-4
201-7-5
201-7-5
201-7-4
201-7-2
201-7-5
201-7-1		 13/12
11/10
11/10
13/12
11
9
9
11
11/10
9
13/12		 8/10
8/10
8/10
8/10
3 mod.
3 mod.
3 mod.
3 mod.
8/10
3 mod.
8/10
