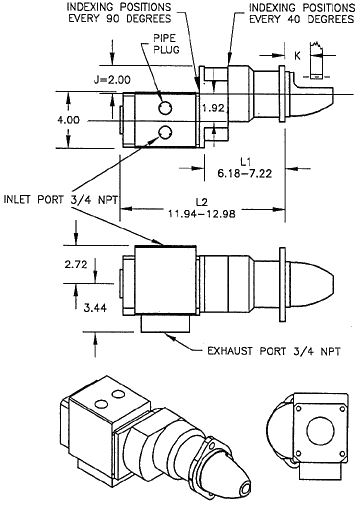

MODEL 200-P4

Performance (2.81:1 Gear Ratio)

Inlet Pressure (PSI) Stall Torque
(ft-lbs)		 Power Rating (Horse
power)		  Cranking
Speed (RPM)		 Diesel Engine Applications
C.I.D. Liters
150
120
90
60		 33
27
20
13		 5.0 MIN
4.0 MIN
2.7 MIN
1.6 MIN		 1200-3500
1200-3400
1100-3200
1000-2800		 0-360 0-6
Typical flow from 15 gallon tank: 2.2 cu.ft./sec.



Part Number
(For Ordering)		 Drive Housing
SAE Number		 Number
Teeth		 Pitch
200-P4-R24
200-P4-R26
200-P4-R28
200-P4-R30
200-P4-R33
200-P4-R35
200-P4-R36
200-P4-R38
200-P4-R39
200-P4-R40
200-P4-R50
200-P4-R53
200-P4-R55
200-P4-R56
200-P4-R59
200-P4-R60
200-P4-R62
200-P4-R63
200-P4-R66
200-P4-R70
200-P4-R80
200-P4-R82
200-P4-R84
200-P4-R85		 1 modified
1
1
1
1
1 modified
1
1
1 modified
1 modified
4 modified
4
-
-
-
4
4
-
-
-
3
3
3
3		 10
10
12
9
10
11
11
9
9
9
10
10
11
9
10
10
9
11
10
10
11
10
9
12		 8/10
8/10
8/10
8/10
10/12
3 module
3 module
3 module
3 module
3 module
8/10
10/12
3 module
3 module
8/10
8/10
8/10
3 module
8/10
8/10
3 module
8/10
3 module
8/10

For more information or questions, please call Toll Free (800)392-3602 or contact sales@psiautomation.com.
