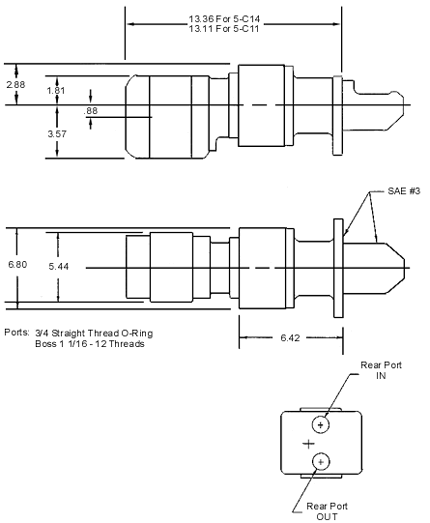

MODEL 5-C14 and 5-C11
Performance
(2.96 cubic inch per revolution gear motor for Model
5-C14 and 2.46 For Model 5-C11)
| Maximum Operating Pressure |
3000 PSIG |
| Input Flow Required For 2400 RPM |
Model 5-C14 - 34 GPM
Model 5-C11 - 29 GPM |
| Recommended Cranking Speed *** |
2400 RPM |
| Maximum Cranking Speed |
3000 RPM |
| Torque At Maximum Operating
Pressure |
Model 5-C14 - 104 FT LB
Model 5-C11 - 86 FT LB |
| Maximum Speed at 1/8 Revolution* |
720 RPM |
| Minimum Speed at 1/8 Revolution* |
** |
* The inertia drive requires controlled increase of flow from
zero for the first revolution of the motor (engine not
rotating). First 1/8 revolution is critical for
starter pinion reliability and life.
** Reliable engagement, or 240 RPM
*** Most applications
Recommended Engine Sizes
| |
Model 5-C14 |
Model 5-C11 |
| Diesel
Engines |
700-1500 cu.in.
11-24 liters |
500-1000 cu. in.
8-15 liters |
Natural gas engines with high driven
loads such as compressors - use diesel recommendation
otherwise, consult factory.
Drive Specifications
| Drive Housing
Mounting To Engine |
SAE #3 |
| Drive Housing Part
Number |
301-5B |
| Drive Part Number |
301-9-RH3A |
| Number Teeth |
12 |
| Pitch |
6/8 |
