MODEL 700-H

Performance (2.77:1 Gear Ratio)

Cranking Power Rating MAX
BHP
BHP (Min.) Starter Pinion
PRM Range		 Air Press.
PSIG
65
48
34		 1900-3600
1800-3600
1600-3400		 150
120
90		 72
56
40
Typical flow from 120 gallon tank: 18 cu. ft./sec.

Recommended Engine Sizes

Diesel Engines Carbureted Engines
1500-7000 Cu. In.
25-110 Liters		 2000-10000 Cu. In.
30-160 Liters

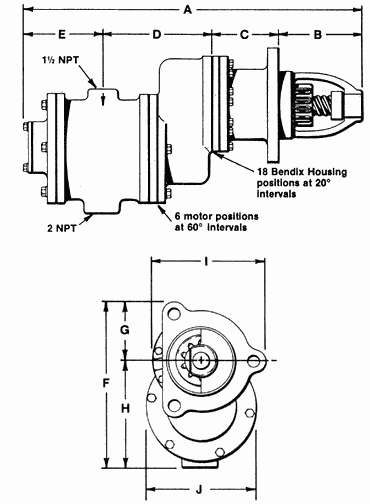

Model Dimensions (inches) Weight (lbs.)
A B C D E F G H I J
700-H 22 1/16 4 13/14 5 7 1/8 5 1/8 9 5/8 3 1/2 6 7/16 6 1/2 6 1/4 68



Part Number Bendix Housing Bendix Drive
(For Ordering) SAE Number Part Number Part Number Teeth Pitch
700-H-RH4
700-H-LH6		 3
3		 301-5B
301-5B		 301-9-RH3
301-9-LH6		 12
12		 6/8
6/8
