MODEL 8 Family
Hydraulic Starters
Input Flow Required for 3000 RPM
(Typical cranking speed) |
Models 8-xx-H15 : 20 GPM
Models 8-xx-H12 : 17 GPM
Models 8-xx-H10 : 12 GPM |
Maximum Flow (for cranking -
4000 RPM) |
Models 8-xx-H15 : 26 GPM
Models 8-xx-H12 : 22 GPM
Models 8-xx-H10 : 16 GPM |
| Maximum Speed at 1/8 Revolution* |
600 RPM |
| Minimum Speed at 1/8 Revolution* |
** |
| Torque At Maximum Operating
Pressure |
Models 8-xx-H15 : 40 FT LB
Models 8-xx-H12 : 34 FT LB
Models 8-xx-H10 : 24 FT LB |
*The inertia drive requires controlled
increase of flow from zero for first revolution
of the motor (engine not rotating). First 1/8 revolution is critical for
starter pinion reliability and life.
** Reliable engagement or 200 RPM.
Recommended Engine Sizes
| |
Model 8-xx-H15 |
Model 8-xx-H12 |
Model 8-xx-H110 |
| Diesel
Engines |
360-550 cu.in.
6-9 liters |
180-400 cu.in.
3-6.5 liters |
90-210 cu.in.
1.5-3.5 liters |
Natural gas engines with high driven
loads such as compressors - use diesel recommendation
otherwise, consult factory.

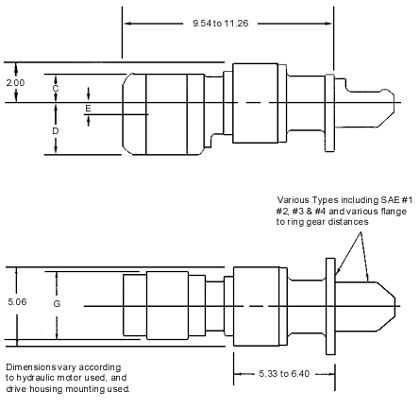

Dimensions (inches)
Drive Specifications
| xx |
Drive Housing
SAE Number |
Number
Teeth |
Pitch |
24
26
28
30
33
35
36
38
39
40
50
53
55
56
59
60
62
63
66
70
80
82
84
85 |
1 modified
1
1
1
1
1 modified
1
1
1 modified
1 modified
4 modified
4
-
-
-
4
4
-
-
-
3
3
3
3 |
10
10
12
9
10
11
11
9
9
9
10
10
11
9
10
10
9
11
10
10
11
10
9
12 |
8/10
8/10
8/10
8/18
10/12
3 module
3 module
3 module
3 module
3 module
8/10
10/12
3 module
3 module
8/10
8/10
8/10
3 module
8/10
8/10
3 module
8/10
3 module
8/10 |
