Parts Lists for Models HS-200, HS-250, HS-302, HS-300

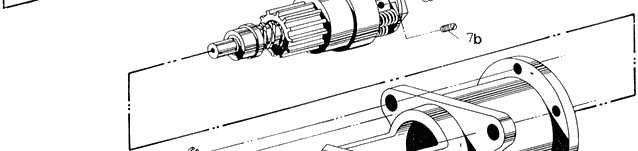

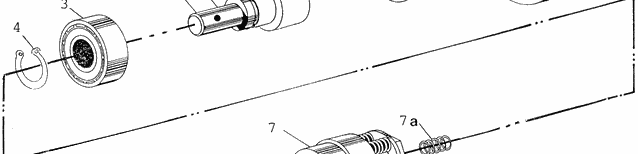

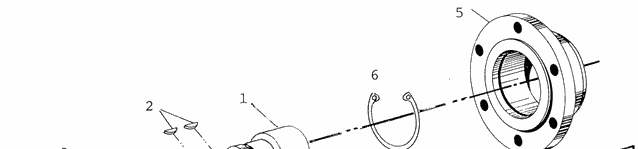

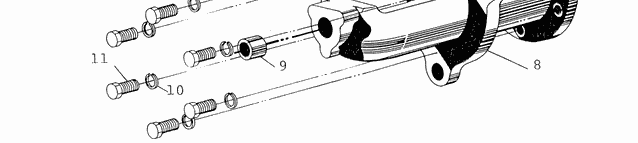

Exploded View Diagram


Replacement Parts List

Item Number Description Quantity Part Number
1


2
3
4
5
6
7




7a
7b
8
9
10
11		 Shaft
     For RH1 or LH2
     For RH4 or LH5
     Key
     Bearing, Sealed
     Lock Ring
Housing Adapter
Not Used
Bendix Drive*
     For HS-250-RH1
     For HS-250-LH2
     For HS-250-R14
     For HS-250-LH5
Spring
Pilot Screw
Bendix Housing
     Pilot Bearing
Lock Washer
Bolt
1
1

1
1
1

1
1
1
1
1

1
1
1
6
6
CS-73-P1
CS-73-P2
      -
CS-75
CS-74
CS-76
Not Used
CS-12
251-7-RH1
251-7-LH2
251-7-RH4
251-7-LH5
      -
      -
251-5
251-11
251-20
CS-54

  * This is a subassembly. It should be replaced as a complet unit.

For more information or questions, please call Toll Free (800)392-3602 or contact sales@psiautomation.com.
