Parts Lists for Models 400-KA

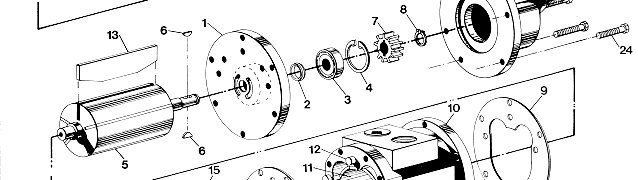

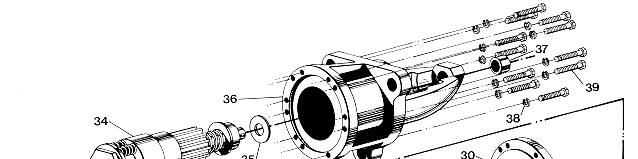

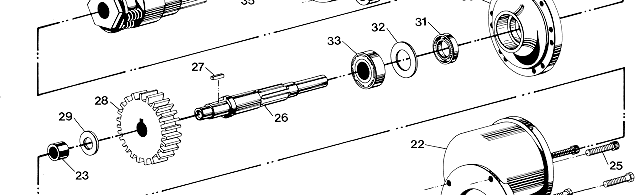

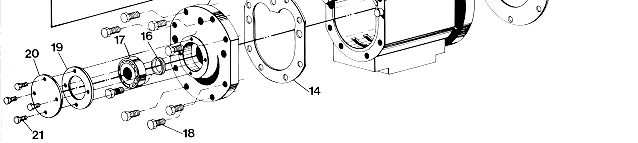

Exploded View Diagram

Replacement Parts List



Item Number	Description	Quantity	Part Number
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39	Inner Plate   Pressure Seal   Rotor Bearing   Rotor Bearing Lock Ring Rotor Pinion Gear Key Pinion Gear Pinion Gear Lock Ring Inner Plate Gasket Rotor Housing   Rotor Sleeve Alignment Dowel Rotor Vane End Plate Gasket End Plate   Pressure Seal   Rotor Bearing End Plate Bolt Retainer Cap Gasket Retainer Cap Retainer Cap Bolt Gear Housing   Pilot Bearing Gear Housing Bolt Gear Housing Bolt Drive Shaft   For 400-KA-RH1   For 400-KA-R14 Key Drive Gear Thrust Washer Housing Adapter   Seal   Spacer   Bearing Bendix   For 400-KA-RH1   For 400-KA-R14 Thrust Washer Bendix Housing     Pilot Bearing Lock Washer Bendix Housing Bolt	1 1 1 1 1 2 1 1 1 1 1 6 5 1 1 1 1 8 1 1 4 1 1 4 2 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 12 12	502-3 502-40 251-15 251-17 402-R4-2 251-R14 404007 251-R13 503-12 202-1-1 404076 502-13 251-25 502-12 502-2 502-40 251-15 CS-54 251-4 251-8-2 251-14 251-RDB-2 251-11 251-21 251-22 251-R7-P1 251-R7-P2 251-R8 404009 251-R5 251-RAP-2 251-R11 251-R10 251-R9 251-7-RH1 251-7-RH4 251-10 251-5 251-11 251-20 251-24

(Parts indented after an Item may be ordered with that item as a subassembly.)

Field Service Without Removal From The Engine

1. The interior of the air motor of the model 400-KA can be exposed for cleaning and rotor vane (item 13) replacement without removing the starter from the engine.

2. Remove eight end plate bolts (item 18). Then insert two of these bolts into the threaded holes in the end plate for use as a "puller".

3. Remove the end plate by progressively tightening the two bolts until the end plate is free to remove by hand.

4. Inspect for dirty parts, rust, foreign objects, vane wear, and freedom of rotation. Rotation will not occur if the starter pinion has engagement with the flywheel ring gear. It may be necessary to remove the starter from the engine if this condition exists.

5. Clean all exposed parts and replace the rotor vanes (item 13) as necessary.

Disassembly and Assembly

1. Before disassembly, mark the mating surfaces of the housings. During reassembly, align the housings to these marks.

2. Refer to the exploded view for disassembly and assembly. Assemble the parts in the directions and relative positions as shown.

3. Lubricate the gears (items 7, 28), thrust washer (item 29), and pilot bearings (items 23, 37) with Texaco Multipurpose 2 grease or equal.

Installation

Refer to PSI Bulletin Number STR-04.

Parts Ordering Information

1. Use PSI authorized replacement parts only.

2. Specify complete starter part number and serial number when ordering replacement parts:

   Part Number:  400-KA-R14
   400-KA is the Model Number and R14 is the drive Number



3. Order by PSI part number and description from the Replacement Parts List.

4. Order from your nearest PSI dealer for from the PSI factory.
