Parts Lists for Models CS-8S and CS-8A

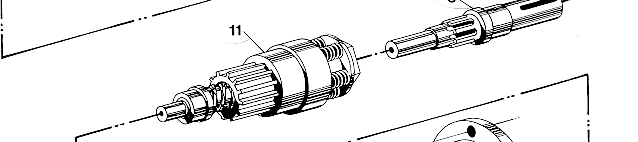

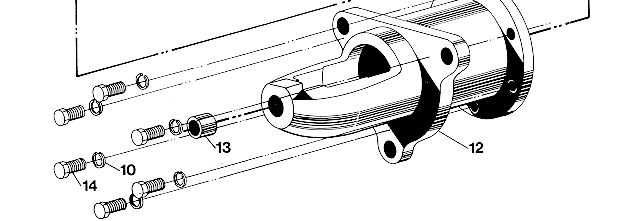

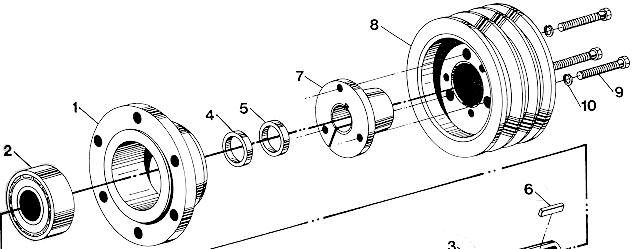

Exploded View Diagram






Replacement Parts List


Item Number Description Quantity Part Number
1
2
3


 4
5
6


7
8


9
10
11






12
13
14		 Bearing Retainer
    Double Row Bearing
Shaft
    For RH1, LH2 and RH8 Bendix Drives
    For RH4 and LH5 Bendix Drives
Spacer for CS-8S and CS-8A
Spacer for CS-8A
Key
    For CS-8S
    For CS-8A
Sheave Bushing
Sheave
    For CS-8S (4.8/5.2)
    For CS-8A (4.2/4.6)
Bolt
Lock Washer
Bendix Drive
    For CS-8S-RH1 and CS-8A-RH1
    For CS-8S-LH2 and CS-8A-LH2
    For CS-8S-RH8 and CS-8A-RH8
    For CS-8S-RH4 and CS-8A-RH4
    For CS-8S-R14 and CS-8A-R14
    For CS-8S-LH5 and CS-8A-LH5
Bendix Housing
    Pilot Bearing
Bolt		 1
1

1
1
1
1

1
1
1

1
1
3
9

1
1
1
1
1
1
1
1
6		 8-CS-25
CS-18

8-CS-10-CA-P1
8-CS-10-CA-P2
CS-30
CS-19

CS-9
CS-53
CS-11

CS-41
CS-42
CS-16
251-20

251-7-RH1
251-7-LH2
251-7-RH8
251-7-RH4
251-7-RH4
251-7-LH5
251-5
251-11
CS-54

(Parts indented after an Item may be ordered with that item as a subassembly.)

Disassembly and Assembly

  1. Refer to the exploded view for disassembly and assembly.

  2. To remove the sheave (item 8) from the sheave bushing (item 7), remove the sheave bolts (item 9) and insert them into the tapped removal holes. Then progressively tighten each bolt until the sheave is loose.

  3. During assembly, the following parts must be retained tight (no end play permitted) by the sheave busing (item 7) and the shoulder of the shaft (item 3): Spacers (items 4 and 5), and inner ring of the bearing (item 2). Caution: Do not back off the sheave busing for belt alignment or any other reason.

Parts Ordering Information

  1. Use PSI authorized replacement parts only.

  2. Specify complete starter part number and serial number when ordering replacement parts:

    Part Number:  CS-8S-RH1
    CS-8S is the Model Number and RH1 is the drive Number



  3. Order by PSI part number and description from the Replacement Parts List.

  4. Order from your nearest PSI dealer for from the PSI factory.
