Parts Lists for Models CS-10S and CS-10A

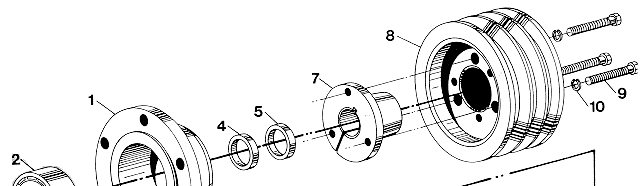

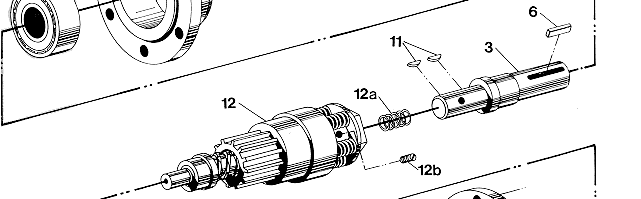

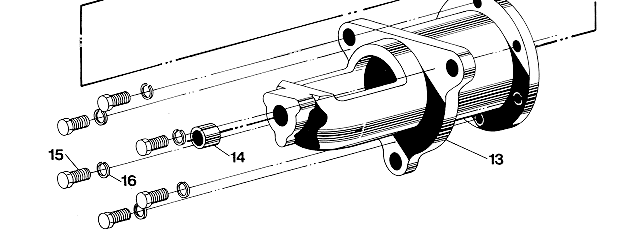

Exploded View Diagram





Replacement Parts List


Item Number Description Quantity Part Number
1
2
3
 4
5
6
7
8


9
10
11
12






12a
12b
13
14

15
16

 Bearing Retainer*
    Double Row Bearing
Shaft
Spacer for CS-10S and CS-8A
Spacer for CS-10A
Key
Sheave Bushing
Sheave
    For CS-10S (5.2/5.6)
    For CS-10A (4.2/4.6)
Bolt
Lock Washer
Key
Bendix Drive
    For CS-10S-RH1
    For CS-10S-RH3 and CS-10A-RH3
    For CS-10S-RH4 and CS-10A-RH4
    For CS-10S-LH5 and CS-10A-LH5
    For CS-10S-LH6 and CS-10A-LH6
    For CS-10S-RH8 and CS-10A-RH8
    Spring
    Pilot Screw
Bendix Housing
    Pilot Bearing
        For all except CS-10S-RH1
        For CS-10S-RH1
Bolt
Lock Washer		 1
1
1
1
1
1
1

1
1
3
3
2

1
1
1
1
1
1
1
1
1

1
1
6
6		 CS-43
CS-18
CS-10
CS-19
CS-19
CS-9
CS-11

CS-12
CS-42
CS-16
251-20
301-19

301-9-RH1
301-9-RH3
301-9-RH3
301-9-LH5
301-9-LH5
301-9-RH8
CS-55
CS-8
301-5B

301-11A
301-11B
301-28
301-26

*Two piece part on some units.
(Parts indented after an Item may be ordered with that item as a subassembly.)

Disassembly and Assembly

  1. Refer to the exploded view for disassembly and assembly.

  2. To remove the sheave (item 8) from the sheave bushing (item 7), remove the sheave bolts (item 9) and insert them into the tapped removal holes. Then progressively tighten each bolt until the sheave is loose.

  3. During assembly, the following parts must be retained tight (no end play permitted) by the sheave busing (item 7) and the shoulder of the shaft (item 3): Spacers (items 4 and 5), and inner ring of the bearing (item 2). Caution: Do not back off the sheave busing for belt alignment or any other reason.

Parts Ordering Information

  1. Use PSI authorized replacement parts only.

  2. Specify complete starter part number and serial number when ordering replacement parts:

    Part Number:  CS-10S-RH1
    CS-10S is the Model Number and RH1 is the drive Number



  3. Order by PSI part number and description from the Replacement Parts List.

  4. Order from your nearest PSI dealer for from the PSI factory.
