Parts Lists for Models 400-H

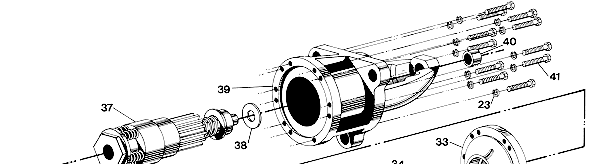

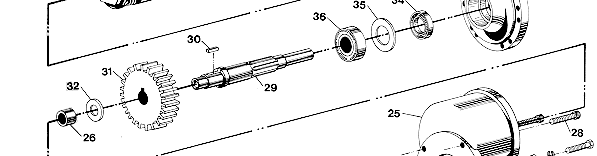

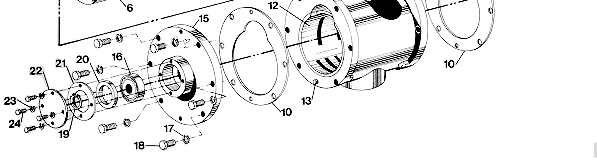

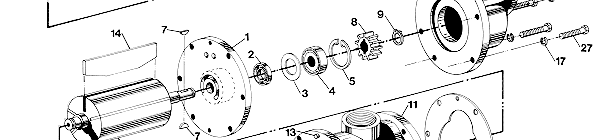

Exploded View Diagram

Replacement Parts List



Item Number	Description	Quantity	Part Number
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41	Inner Plate     Rotor Shaft Seal     Rotor Shaft Spacer     Rotor Bearing     Rotor Bearing Lock Ring Rotor Pinion Gear Key Pinion Gear     For 400H     For 400F Pinion Gear Lock Ring Rotor Housing Gasket Rotor Housing     Rotor Sleeve Alignment Dowel Rotor Vane End Plate     Rotor Bearing Lock Washer End Plate Bolt Rotor Lock Ring Rotor Position Spacer Retainer Cap Gasket Retainer Cap Lock Washer Retainer Cap Bolt Gear Housing     Pilot Bearing Gear Housing Bolt Gear Housing Bolt Drive Shaft     For 400H-RH1, LH2, RH8     For 400H-RH4, LH5     For 400F Key Drive Gear     For 400H     For 400F Thrust Washer Housing Adapter     For 400H     For 400F     Seal     Spacer     Bearing  Bendix     For 400H-RH1     For 400H-LH2     For 400H-RH4     For 400H-LH5     For 400H-RH8     For 400F Thrust Washer     For 400H     For 400F Bendix Housing     For 400H     For 400F     Pilot Bearing         For 400H         For 400F Bendix Housing Bolt	1 1 1 1 1 1 2 1 1 1 2 1 1 4 5 1 1 10 6 1 1 1 1 ***15 4 1 1 4 2 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 ***11	401-3 251-18 251-16 251-15 251-17 251-R4 251-R14 404096 502-R49 251-R13 401-12 402-12 401-6-1 251-13 251-25 401-2 251-15 251-23 251-19 251-9 *251-26 251-4 251-8 251-20 251-14 251-RDB-2 251-11 251-21 251-22 251-R7-P1 251-R7-P2 ** 251-R8 404099 251-R32-D 251-R5 251-RAP-2 ** 251-R11 251-R10 251-R9 251-7-RH1 251-7-LH2 251-7-RH4 251-7-LH5 251-7-RH8 ** 251-10 ** 251-5 ** 251-11 ** 251-24
* Integral with 251-8 on some starters.   ** Specify "Description" and complete starter part number, including "Drive Number". *** Quantity varies on some starters.

(Parts indented after an Item may be ordered with that item as a subassembly.)

Disassembly and Assembly

1. Before disassembly, mark the mating surfaces of the housings. During reassembly, align the housings to these marks.

2. Refer to the exploded view for disassembly and assembly. Assemble the parts in the directions and relative positions as shown.
   Note: The directions of the rotor housing (item 11), rotor sleeve (item 12), and two rotor housing gaskets (item 10) are shown for standard right had rotation starters. For left hand rotation starters, the directions of these four parts are opposite from the exploded view.

3. Lubricate the gears (items 8, 31), thrust washer (item 32), and pilot bearings (items 26, 40) with Texaco Multipurpose 2 grease or equal.

Installation

Refer to PSI Bulletin Number STR-04.

Parts Ordering Information

1. Use PSI authorized replacement parts only.

2. Specify complete starter part number and serial number when ordering replacement parts:

   Part Number:  400-H-RH1
   400-H is the Model Number and RH1 is the drive Number

3. Order by PSI part number and description from the Replacement Parts List.

4. Order from your nearest PSI dealer for from the PSI factory.
