Parts Lists for Models 600-H

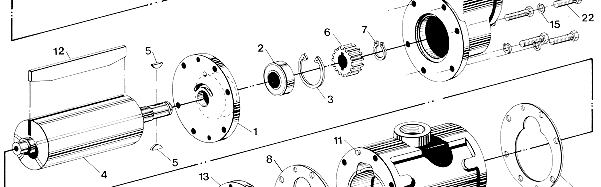

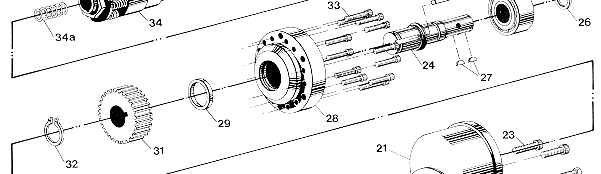

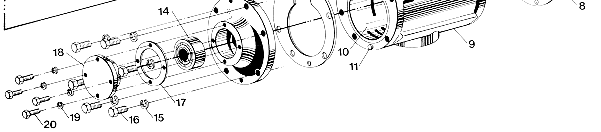

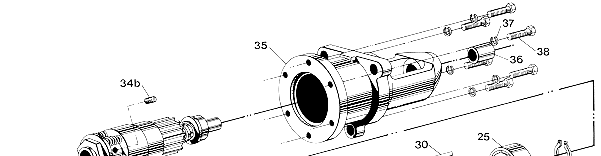

Exploded View Diagram

Replacement Parts List



Item Number	Description	Quantity	Part Number
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 34a 34b 35 36 37 38	Inner Plate     Rotor Bearing, Sealed     Rotor Bearing Lock Ring Rotor Pinion Gear Key Pinion Gear Pinion Gear Lock Ring Rotor Housing Gasket Rotor Housing     Rotor Sleeve Alignment Dowel Rotor Vane End Plate     Rotor Bearing Lock Washer End Plate Bolt Bearing Cap Gasket Bearing Cap Lock Washer Bearing Cap Bolt Gear Housing Gear Housing Bolt Gear Housing Bolt Drive Shaft     Double Row Bearing     Lock Ring Key Housing Adapter Gear Housing Seal Key Drive Gear Drive Gear Lock Ring  Housing Adapter Bolt Bendix     For 600-H-RH3     For 600-H-RH4     For 600-H-LH5     For 600-H-LH6   Spring   Pilot Screw Bendix Housing     Pilot Bearing Lock Washer Bendix Housing Bolt	1 1 1 1 2 1 1 2 1 1 4 5 1 1 10 6 1 1 4 4 1 4 2 1 1 1 2 1 1 1 1 1 12 1 1 1 1 1 1 1 1 6 6	601-3 601-15 601-17 602-R4-2 251-R14 501-R45-3 251-9 602-12 601-1 601-6-1 251-13 602-25 401-2 251-15 251-23 251-19 251-4 251-8-2 251-20 251-14 251-RDB-3 251-21 251-22 601-R36 CS-18 CS-47 301-19 601-30 601-R41 301-R8 501-R44-2 601-R40 401-29 301-9-RH3 301-9-RH3 301-9-LH5 301-9-LH5 CS-55 CS-8 301-5B 301-11A 301-26 301-28

(Parts indented after an Item may be ordered with that item as a subassembly.)

Disassembly and Assembly

1. Before disassembly, mark the mating surfaces of the housings. During reassembly, align the housings to these marks.

2. Refer to the exploded view for disassembly and assembly. Assemble the parts in the directions and relative positions as shown.
   Note: The directions of the rotor housing (item 9), rotor sleeve (item 10), and two rotor housing gaskets (item 8) are shown for standard right had rotation starters. For left hand rotation starters, the directions of these four parts are opposite from the exploded view.

3. Lubricate the gears (items 6, 31), and pilot bearing (item 36) with Texaco Multipurpose 2 grease or equal.

Inspection Before Removal From The Engine

1. The interior of the air motor of the model 600-H can be exposed for cleaning and rotor van (item 12) replacement without removing the starter from the engine.

2. Remove the end plate subassembly (item 13 through 20) as a unit by removing the six end plate bolts (item 16).

Installation

Refer to PSI Bulletin Number STR-04.

Parts Ordering Information

1. Use PSI authorized replacement parts only.

2. Specify complete starter part number and serial number when ordering replacement parts:

   Part Number:  600-H-RH4
   600-H is the Model Number and RH4 is the drive Number

3. Order by PSI part number and description from the Replacement Parts List.

4. Order from your nearest PSI dealer for from the PSI factory.
