A Break Through in Noise Reduction

The Safety Silencer is a two-chamber system that is particularly suitable for use on air motor applications. 'The combination of the expansion chamber and diffuser effectively attenuates the noise to 78-83 dBa on our entire series of air motors.

The design allows for high flow capacities with minimal back pressure. The Safety Silencer helps meets strict government regulations on "hearing conservation standards" for many industries both in the U.S. and Europe.

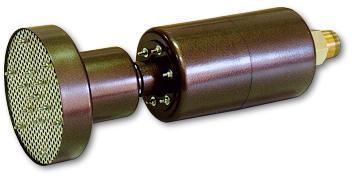

Safety Silencer

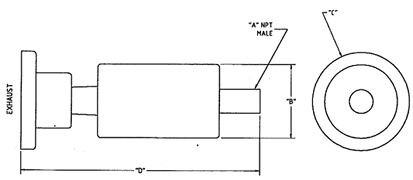

Safety Silencer Diagram



A B C D PART NUMBER
3/4 3.15 7.87 15.10 405006
1 4.29 7.87 17.50 405008
1 1/2 5.91 7.87 21.16 405012
2 5.91 7.87 21.16 405016
