Bi-Directional Air Motor Control System
(Diagram 3)

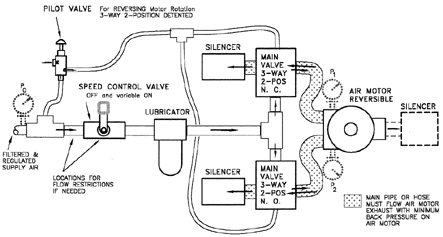

Bi-Directional Air Motor Control System

Click Picture for Larger View

Air Motor
Series
Main
Valve
Rating
Main
Valve
2
Needed
Main
Pipe
Size
Main
Hose
Size
Silencers
For Main
Valves
2
Needed
Silencer
For
Air Motor
Lubricator Speed
Control
Valve
Pilot
Valve
  (Cv) (ref #) (inch) (inch) (ref #) (ref #) (ref #) (ref #) (ref #)
DV6
DV10
DV20*
24
20
24*
L24-P
L24-P
L24-P
1
1
1 1/4
1 1/4
1 1/4
1 1/2
S-1 1/2
S-1 1/2
S-1 1/2
S-3/4
S-1 1/2
S-2A
T-3/4
T-1
T-1 1/4
A-3/4
A-1
A-1 1/4
D-1/8-T
D-1/8-T
D-1/8-T

* This control system is designed to restrict flow for reduced RPM and horsepower. Please note that these PSI motors provide excellent starting and stall torque characteristics even when used with valves of 24 Cv rating. See diagram 4b for higher horsepower and RPM.
