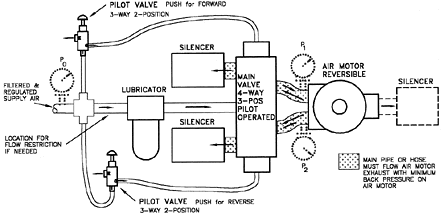

Bi-Directional Air Motor Control System
(Diagram 6)
Click Picture for Larger View
| Air Motor Series |
Main Valve Rating |
Main Valve | Main Pipe Size |
Main Hose Size |
Silencers 2 Needed For Main Valve |
Silencer For Air Motor |
Lubricator | Pilot Valves 2 Needed |
| (Cv) | (ref#) | (inch) | (inch) | (ref #) | (ref #) | (ref #) | (ref #) | |
| CDVB4 | 2.5 | K03-P | 3/8 | 3/8 | S-3/8 | S-1/2 | T-3/8 | D-1/8 |
| DVAR DVA Low Mode DVA High Mode |
4 6 5 |
K06-P K06-P K06-P |
3/8 1/2 1/2 |
1/2 3/4 3/4 |
S-1/2 S-1/2 S-1/2 |
None None S-3/4 |
T-1/2 T-1/2 T-1/2 |
D-1/8 D-1/8 D-1/8 |
| DV4 DV6* DV10* |
10 12* 12* |
K12-P K12-P K12-P |
3/4 1 1 |
1 1 1 |
S-1 S-1 S-1 |
S-3/4 S-3/4 S-1 1/2 |
T-1/2 T-3/4 T-1 |
D-1/8 D-1/8 D-1/8 |
* This control system is designed to restrict flow for reduced RPM and horsepower. Please note that these PSI motors provide excellent starting and stall torque characteristics even when used with valves of 12 Cv rating. See diagram 7 for higher horsepower and RPM.
For more information or questions, please call Toll Free (800)392-3602 or contact sales@psiautomation.com.
