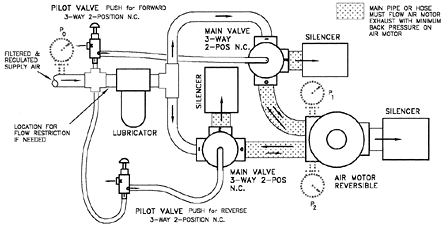

Bi-Directional Air Motor Control System
(Diagram 7)
Click Picture for Larger View
| Air Motor Series |
Main Valve Rating |
Main Valves 2 Needed |
Main Pipe Size |
Main Hose Size |
Silencers For Main Valves 2 Needed |
Silencer For Air Motor |
Lubricator | Pilot Valves 2 Needed |
| (Cv) | (ref #) | (inch) | (inch) | (ref #) | (ref #) | (ref #) | (ref #) | |
| DV6 DV10 DV20* |
24 20 24* |
L24-P L24-P L24-P |
1 1 1 1/4 |
1 1/4 1 1/4 1 1/2 |
S-1 1/2 S-1 1/2 S-1 1/2 |
S-3/4 S-1 1/2 S-2A |
T-3/4 T-1 T-1 1/4 |
D-1/8 D-1/8 D-1/8 |
* This control system is designed to restrict flow for reduced RPM and horsepower. Please note that these PSI motors provide excellent starting and stall torque characteristics even when used with valves of 24 Cv rating. See diagram 8 for higher horsepower and RPM.
