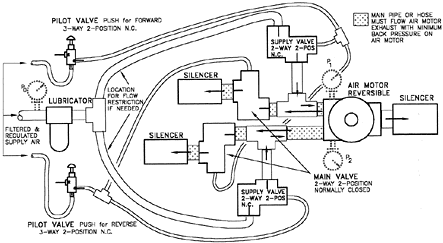

Bi-Directional Air Motor Control System
(Diagram 8)
Click Picture for Larger View
| Air Motor Series |
Main Valve Rating |
Main & Supply
Valves 4 Needed |
Main Pipe Size |
Main Hose Size |
Silencers For Main Valves 2 Needed |
Silencer For Air Motor |
Lubricator | Pilot Valves 2 Needed |
| (Cv) | (ref#) | (inch) | (inch) | (ref #) | (ref #) | (ref #) | (ref #) | |
| DV6 DV10 |
24 20 |
C-1 1/2 C-1 1/2 |
1 1 |
1 1/4 1 1/4 |
S-1 1/2 S-1 1/2 |
S-3/4 S-1 1/2 |
T-3/4 T-1 |
D-1/8 D-1/8 |
| DV20 DV42 |
40 40 x 2 |
C-1 1/2 C-1 1/2 8 Needed |
1 1/4 1 1/4 |
1 1/2 1 1/2 |
S-1 1/2 S-1 1/2 4 Needed |
S-2A S-2A 2 Needed |
T-1 1/4 T-2 |
D-1/8 D-1/8 |
