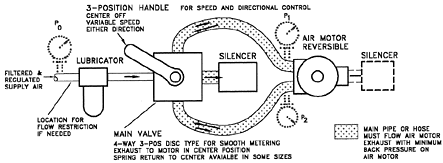

Bi-Directional Air Motor Control System
(Diagram 9)

  Click Picture for Larger View

Air Motor
Series
Main
Valve
Rating
Main
Valve
Main
Pipe
Size
Main
Hose
Size
Silencer
For
Main Valve
Silencer
For
Air Motor
Lubricator
  (Cv) (ref #) (inch) (inch) (ref #) (ref #) (ref #)
CDVB4 2.5 K03-M 3/8 3/8 S-3/8 S-1/2 T-3/8
DVAR
DVA Low Mode
4
6
K06-M
K06-M
3/8
1/2
1/2
3/4
S-1/2
S-1/2
None
None
T-1/2
T-1/2
DVA High Mode
DV4
5
10
K06-M
K12-M
1/2
3/4
3/4
1
S-1/2
S-1
S-3/4
S-3/4
T-1/2
T-1/2
DV6*
DV6
12*
24
K12-M
K24-M
1
1
1
1 1/4
S-1
S-1 1/4
S-3/4
S-3/4
T-3/4
T-1
DV10*
DV10
12*
20
K12-M
K24-M
1
1
1
1 1/4
S-1
S-1 1/4
S-1 1/2
S-1 1/2
T-1
T-1
DV20*
DV20
24*
40
K24-M
K40-M
1 1/4
1 1/4
1 1/2
1 1/2
S-1 1/4
S-1 1/2
S-2A
S-2A
T-1 1/4
T-1 1/4
DV42 60* K60-M 2 2 1/2 S-2A S-2A
2 Needed
T-2

* This control system is designed to restrict flow for reduced RPM and horsepower. Please note that these PSI motors provide excellent starting and stall torque characteristics even when used with valves of reduced Cv rating as shown.
